Modulina Straw Panels
)
)
)
The Modulina Straw Panels are prefabricated wall elements composed of tightly compressed straw encased in a precisely manufactured timber frame. The accuracy of the timber frame is within ±2 mm, ensuring high precision and ease of installation.

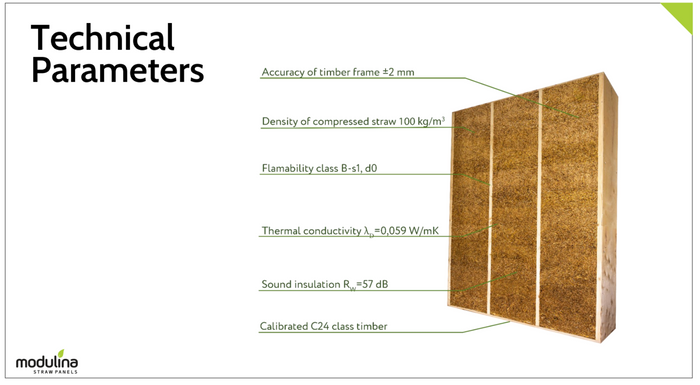

Key technical specifications include:
-
Density of compressed straw: 100 kg/m³, offering a balance of insulation and structural infill.
-
Flammability classification: B-s1, d0, indicating low smoke production and no flaming droplets in fire scenarios—exemplary for a natural material.
-
Thermal conductivity (λₐ): 0.059 W/mK, providing effective insulation suitable for energy-efficient buildings.
-
Sound insulation (Rₐ): 57 dB, ensuring strong acoustic performance—ideal for residential and public use.
-
Material: The frame is built from calibrated C24 class timber, a structural-grade softwood suitable for load-bearing use in modern timber construction.
Together, these parameters make Modulina panels an eco-conscious and high-performance choice for buildings aiming to meet climate targets and health-focused indoor standards.
